Duplex Filter System
Duplex Filter System
Product Description
A duplex filter system is a specialized product used for industrial filtration applications, designed to maintain uninterrupted fluid or gas filtration by utilizing two parallel filter chambers. This product is particularly valuable in industries where consistent filtration is crucial, such as manufacturing, oil and gas, chemical processing, and more. Below is a product description highlighting key features and components of a typical duplex filter system:
Product Details
Flow Rate | Up to 2000 m3/hr & more |
Test Pre. | up to 100 kg/cm2 |
MOC | SS316L, SS316, SS304L , SS304, MS, MSRL ,PTFE Lining, Halar Lining |
To Suitable Size | Customized as per Client requirement Finishing Mirror Polished , Matt Finished, Powder Coated, Painted |
Surface Area | 400 M2 |
Line Size | 1/4" NB to 20" NB |
Connection Type | BSP (F), NPT (F) Threaded, Flanged 150#, 300#, Table E, F |
Cartridge Fitting | Pushfit, DOE, SOE, Code-7 , Flange Type |
Type | Jacketed / Non-Jacketed |
Finishing | Mirror Polished , Matt Finished |
Key Features:
Dual Filter Chambers:
The core feature of a duplex filter system is its two separate filter chambers. These chambers allow for continuous filtration without interruption. While one chamber is actively filtering the fluid or gas, the other chamber can be in standby mode, ready for use when the active chamber requires maintenance or cleaning.
Switching Valves:
The system includes switching valves that control the flow of the fluid or gas between the two filter chambers. These valves can be manually or automatically operated based on various factors, such as pressure differentials or time intervals.
Diverse Filter Element Options:
Duplex filter systems are versatile and can accommodate various types of filter elements based on the specific filtration requirements. Common filter element options include cartridge filters, bag filters, screen filters, or specialized media depending on the application.
Material Compatibility:
The filter housing and components are constructed from materials that are compatible with the fluid or gas being filtered. Materials such as stainless steel, carbon steel, or corrosion-resistant plastics are commonly used to ensure product longevity.
Pressure Gauges and Monitoring:
Many duplex filter systems are equipped with pressure gauges or sensors to monitor the condition of the filter elements. This allows for timely filter element replacement or cleaning, minimizing downtime and ensuring consistent filtration efficiency.
Easy Maintenance:
Maintenance procedures are typically straightforward, with the ability to isolate one chamber for servicing while the other remains operational. This ensures that maintenance tasks do not disrupt the filtration process for extended periods.
Customization Options:
Duplex filter systems can often be customized to meet specific application needs, including flow rates, filtration media, pressure ratings, and automation features.
Benefits:
-
Continuous Filtration: The duplex design ensures filtration continuity, minimizing downtime and production interruptions.
-
Cost-Efficiency: Effective filtration reduces maintenance costs and extends the lifespan of equipment.
-
Enhanced Product Quality: Ensures product quality and compliance with industry standards by removing contaminants.
-
Flexible Maintenance: Maintenance can be scheduled and carried out without disrupting the filtration process.
-
Customization: Tailored to meet specific application requirements for flow rates, pressure ratings, and filtration media.
-
Duplex filter systems are a reliable solution for industries where consistent and efficient filtration is essential, contributing to improved product quality and equipment longevity while minimizing downtime and maintenance costs.
Applications:
-
Oil and Gas: For the filtration of hydraulic fluids, lubricants, and fuels to protect critical machinery.
-
Chemical Processing: To maintain the purity of chemical solutions and prevent contamination during production.
-
Water Treatment: In municipal and industrial water treatment facilities for removing impurities from water.
-
Food and Beverage: Ensuring the quality and safety of food and beverage products by removing contaminants.
-
Pharmaceutical: Maintaining product purity in pharmaceutical manufacturing processes.
-
Manufacturing: Protecting machinery and equipment from debris and particulates in various manufacturing processes.

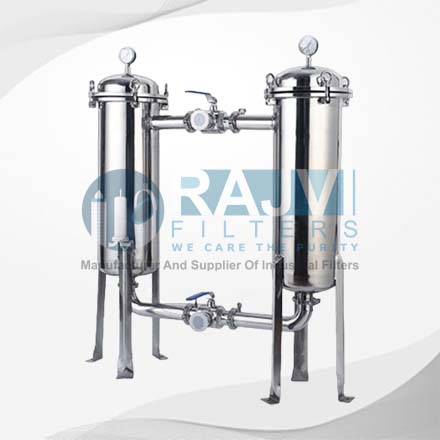

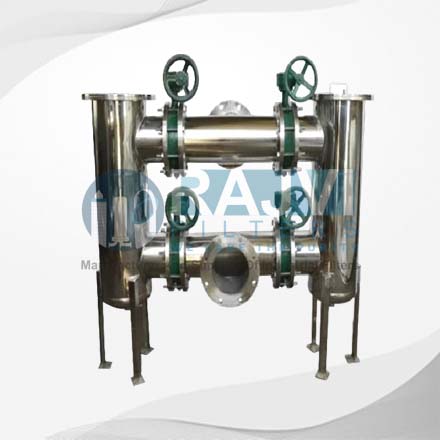

Related Products
